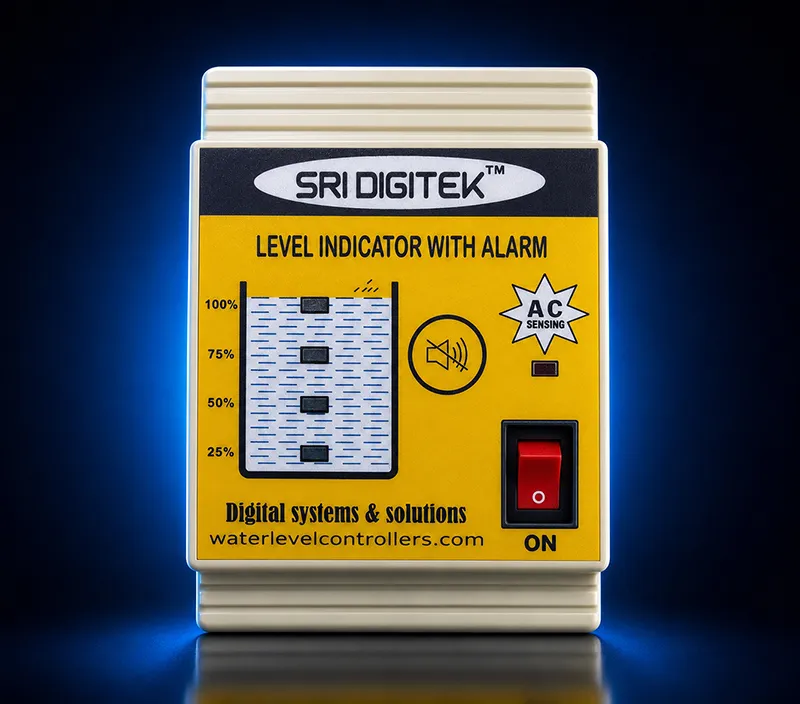

Sri DIGITEK® Basic Water Level Controller with Indicator
The ECO-01 is the simplest basic water level controller with an indicator, designed as the most economical and energy-efficient product from Sri Digitek[cite: 5]. It automatically switches the pump on or off to maintain predefined water levels in storage tanks[cite: 5].
⚙️ Key Features & Basic Capabilities
Reserve / Empty Auto-Start
When the overhead tank is in reserve mode or empty, it automatically starts the motor if water is present in the sump tank[cite: 5].
Pipeline Flow Indicator
Indicates water presence on the unit when flow is active in the pipeline[cite: 5].
Pipeline Leakage & Blockage Tracking
Tracks water progression reaching the tank, helping spot open taps, blockages, leaks, or damages in pipelines[cite: 5].
Low AC Voltage Sensing Circuit
Avoids electrode polarization in water using long-life stainless steel plastic molded conductive electrodes that require no frequent cleaning or replacement[cite: 5].
Basic Visual Indications
Features 2 green-colored sump level indications (foot valve level & half tank) and 2 overhead tank indications (half tank & full tank), plus power and dry-run lights[cite: 5].
Manual & NEED Controls
Includes a rocker switch to select Auto/Manual operation and a soft-touch 'NEED' button to switch ON the motor irrespective of overhead tank levels[cite: 5].
📋 Technical Specifications
| Model Code | ECO-01 (Basic Series)[cite: 5] |
|---|---|
| Manufacturer | Smart Care Systems |
| Compatible Application | Monoblock pumps (sump motors)[cite: 5] |
| Overhead Tank Levels | 2 Level Indications (Half Tank & Full Tank)[cite: 5] |
| Sump Tank Levels | 2 Level Indications (Foot Valve Level & Half Tank)[cite: 5] |
| Sensor Type | Stainless Steel Plastic Molded Conductive Electrodes (Low AC Sensing)[cite: 5] |
| Operation Control | Auto/Manual Rocker Switch & Soft-touch 'NEED' Button[cite: 5] |
🏡 Ideal Applications
Monoblock Sump Motors
Designed specifically as an economical solution for standard single-phase monoblock sump motor applications[cite: 5].
Basic Residential Tanks
Simple half-tank and full-tank level management for homes requiring straightforward automated filling.
Energy-Efficient Setups
The most basic and low-power water level controller configuration from Sri Digitek[cite: 5].
