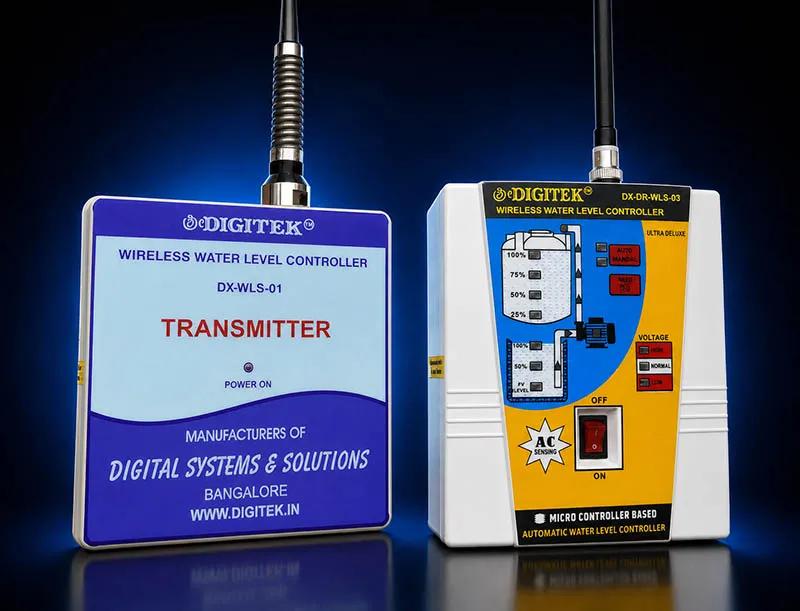

Sri DIGITEK® Wireless Automatic Water Level Controller
The Sri DIGITEK® ULDX-WLS-XX is an advanced long-range RF wireless water level controller designed to eliminate long sensor wiring between distant overhead tanks and ground pumps. Operating on secure, encrypted radio frequencies, it transmits real-time tank level telemetry automatically without lightning risk, cable damage, or trenching costs.
⚙️ Key Features & Wireless Engineering
Long-Range RF Telemetry
Uses license-free, encrypted radio frequency communication (433 MHz / 868 MHz) capable of covering long distances between remote tanks and control panels without signal interference.
Zero Sensor Wiring Required
Saves expensive trenching, conduit laying, and wire replacement costs over long distances. Completely immune to lightning surges traveling through outdoor signal cables.
Automated Link Health Monitoring
The receiver continuously verifies radio contact with the overhead transmitter. If signal transmission is lost or interrupted, the system safely shuts down the pump and triggers an alarm.
Full Pump Safety Suite
Combines wireless tank telemetry with local sump dry-run protection, high/low voltage cutoffs, and power surge protection modules for complete motor safety.
Maintenance-Free AC Sensors
Employs Sri DIGITEK® SS316 stainless steel probes at both overhead and source tanks to prevent rusting, electrolysis, and salt scaling.
Solar-Powered Transmitter Option
For remote overhead tanks without electrical power outlets, an optional solar panel with rechargeable lithium battery powers the transmitter 24/7 uninterrupted.
📋 Technical Specifications
| Model Code | ULDX-WLS-XX (Sri DIGITEK® Wireless Controller) |
|---|---|
| Manufacturer | Smart Care Systems |
| Wireless Range | Up to 1,000 meters (Line-of-Sight Line RF Telemetry) |
| Operating Frequency | 433 MHz / 868 MHz ISM Band (Encrypted Protocol) |
| Power Supply (Receiver Unit) | 230V AC, 50 Hz |
| Power Supply (Transmitter Unit) | 230V AC or Solar Panel + Internal Lithium Battery Backup |
| Relay Contact Rating | 30 Amps Heavy-Duty Relay Output (up to 2 HP / 3 HP motors) |
| Protections Included | RF Signal Fail Safe, Dry-Run Cutoff, High/Low Voltage Cutoff (180V - 260V) |
| Probes | SS316 Stainless Steel Molded Electrodes |
🏡 Ideal Applications
Multi-Story Villas & Layouts
Perfect for properties where overhead tanks are situated hundreds of meters away from ground sumps or borewells.
Agricultural & Farmhouses
Controls distant farm borewells and hilltop storage tanks effortlessly without laying vulnerable overhead wires.
Commercial Campuses
Ideal for educational institutions, hospitals, and industrial parks with distributed water infrastructure.
