Sri DIGITEK® Multi-Tank Automatic Water Level Controller with Motorized Solenoid Valves
Specially designed for apartment buildings and large residential complexes where multiple tanks utilize higher HP 3-phase pumps. Each tank's delivery line is fitted with a motorized solenoid valve, allowing individual electronic level monitoring and automated routing from 2 up to 24 tanks based on site requirements.
📐 Click to View Wiring & Installation Line Diagram Expand / Collapse
Review the official layout schematic below for connecting multi-tank sensor probes, power control lines, and motorized solenoid valves:

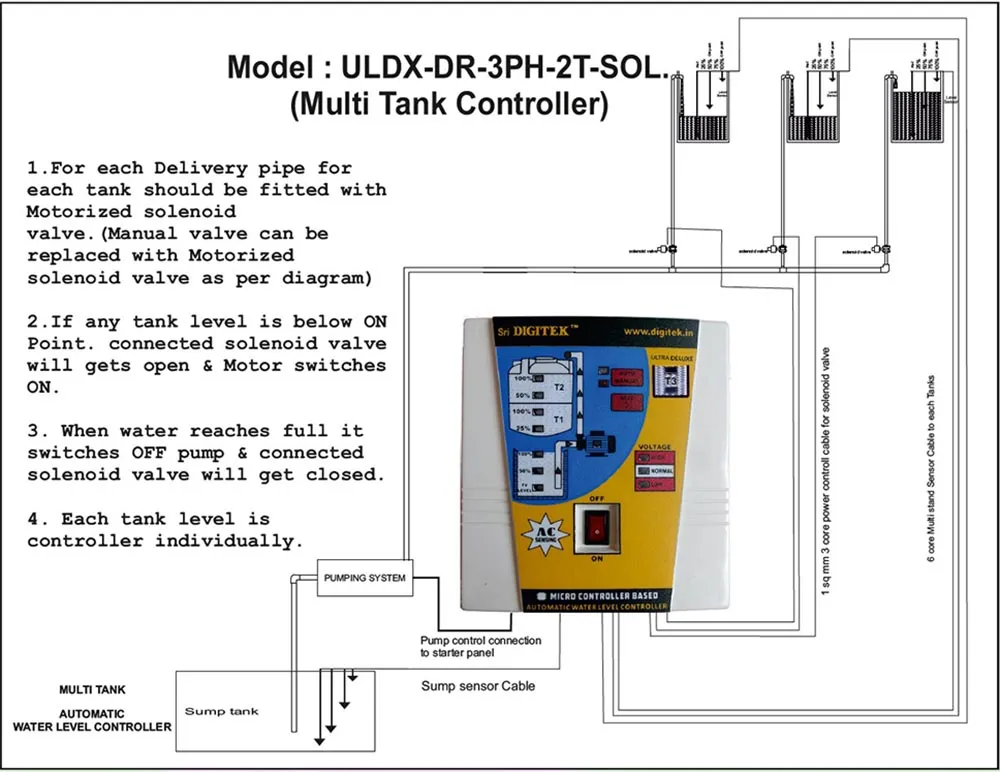

Figure: Application Line Diagram for Multi-Tank Solenoid Controller
Solenoid Valves
Replace manual valves on each tank delivery pipe with motorized solenoid valves.
Tank Sensors
Run 6-core multi-strand sensor cables to individual 50% & 100% probes in each tank.
Valve Power Lines
Connect 1 sq mm 3-core power control cables from the panel to each valve.
Pump Starter
Link pump control connections directly to your 3-phase starter panel.
⚙️ Operating Logic & Key Features
Automatic Solenoid & Pump Trigger
If any tank level falls below the ON point, its corresponding solenoid valve opens automatically and the motor switches ON.
Automatic Shut-Off Cycle
When water reaches full capacity in a tank, it switches OFF the pump and closes the connected solenoid valve securely.
Scalable Multi-Tank Architecture
Configurable for multi-tank deployments ranging from 2 tanks up to 24 tanks depending on exact apartment site specifications.
📋 Technical Specifications
| Model Code | ULDX-DR-3PH-2T-SOL (Multi Tank Solenoid Controller) |
|---|---|
| Manufacturer | Smart Care Systems |
| Target Application | Apartment buildings and commercial sites utilizing higher HP 3-phase pumps across multiple tanks |
| Tank Capacity Range | Scalable from 2 tanks up to 24 tanks per site requirements |
| Valve Actuation Cabling | Motorized Solenoid Valves linked via 1 sq mm 3-core control cables |
| Sensor Cabling | 6-core multi-strand sensor cables to each tank |
🏡 Ideal Applications
Large Apartment Complexes
Manages complex distribution across multiple overhead blocks fed by a single high-capacity 3-phase pump.
Multi-Wing Housing Societies
Isolates water supply intelligently using motorized solenoid valves so tanks fill sequentially or on demand.
Commercial High-Rises
Scalable up to 24 tanks with individual electronic oversight and automated dry-run/surge protection.
